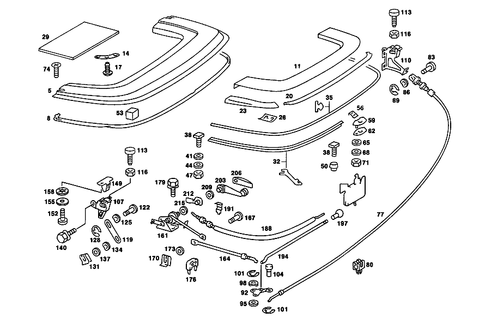

Folding Top Case Cover for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
Price
8
Sealing Frame
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Folding top case cover.
MSRP $650.00
$446.20
MSRP $650.00
$446.20
11
Imitation Leather Mercedes-Benz
Mercedes-Benz Description: Mb-tex;smooth;1500mm wide. Folding top case cover lining.
11
Imitation Leather Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Mb-tex;smooth;1500mm wide. Folding top case cover lining.
17
Grommet Mercedes-Benz
Mercedes-Benz Description: Entrance lining to side member. Covering to bracket. Rear flooring to side member. Upholstery fast. To backrest frame links. Lining on cross member below rear seat. Bracket to transmission tunnel. Lining to cross member. Rear panel. Used with thru-loading facility.
MSRP $2.50
$1.91
MSRP $2.50
$1.91
26
Nut Mercedes-Benz
Mercedes-Benz Description: Insulation to fire wall,inside. Garnish moulding to covering. Mounting plate to fire wall. Footrest to fire wall. Ledge to covering. Covering below instrument panel,left. Covering to fire wall insulation. Panelling to front panel pillar. At bracket. Center panelling at door trim panel.
MSRP $1.00
$0.76
MSRP $1.00
$0.76
35
Intermediate Layer Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 1110 mm. 870 mm.
MSRP $46.00
$34.93
MSRP $46.00
$34.93
38
Screw Mercedes-Benz
Mercedes-Benz Description: For ornamental bar at window moulding, bottom. Garnish moulding to folding top case cover.
MSRP $14.00
$10.54
MSRP $14.00
$10.54
41
Elastomer Washer Mercedes-Benz
Mercedes-Benz Description: Under garnish moulding. Garnish moulding to folding top case cover.
MSRP $1.70
$1.27
MSRP $1.70
$1.27
47
Nut Mercedes-Benz
Mercedes-Benz Description: Garnish mouldings to engine hood. Garnish moulding to folding top case cover.
50
MSRP $15.50
$11.68
101
Retaining Washer Mercedes-Benz
Mercedes-Benz Description: DOOR ARRESTERDiameter: 8mmInside diameter: 9mmOutside diameter: 16,3mmMaterial thickness: 1mm. LEVER TO FOLDING TOP SUPPORTDiameter: 8mmInside diameter: 9mmOutside diameter: 16,3mmMaterial thickness: 1mm. PIN TO REVERSING LEVERDiameter: 8mmInside diameter: ...
MSRP $2.20
$1.65
MSRP $2.20
$1.65
116
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Bracket to wheelhouse covering. For stop screw. Stop above posterior muffler to 1244920087. Wiper arm on spindle. Oil cooler line to radiator.
131
Mechanical Securing Mercedes-Benz
Mercedes-Benz Description: At handle. Thrust rod to guide bearing.
MSRP $1.50
$1.14
MSRP $1.50
$1.14
137
MSRP $3.00
$2.29
152
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Left and right flap paneling to hinge.
MSRP $1.40
$1.02
MSRP $1.40
$1.02
155
MSRP $2.00
$1.52
155
Washer Mercedes-Benz
Mercedes-Benz Description: Wiper system mounting plate to partition panel center. Battery frame,front. Brake power regulator to bracket. Battery frame to fire wall. Cooling pipe to frame side member. Hydraulic unit to bracket. Strut to stiffening,front central. Temperature sensor to front bumper.
158
Tooth Lock Washer Mercedes-Benz
Mercedes-Benz Description: Fresh-air flap to hinges. Fastener to folding top case, center. Lock upper part to folding top case cover.
191
Clamp Mercedes-Benz
Mercedes-Benz Description: To mount wire cable to heater box. Wire cable to heater case. Cable pull. Cable casing to heater case. Wire cables to heater box.
