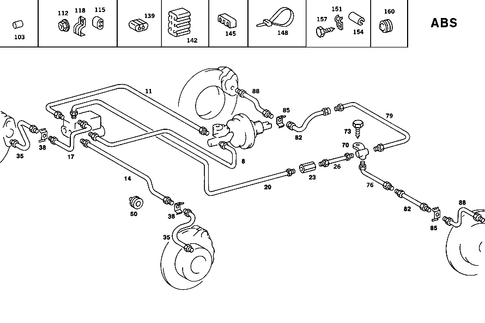

Brake Line for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
Price
17
Line
Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: From master cylinder to rear hydraulic unit. From adapter fitting to hydraulic unit,connection: "e". From front master cylinder to hydraulic unit,connection: "h". From hydraulic unit to adapter fitting,front right teves-ate. Red 830 mm. From master cylinder,connection "v",to hydraulic unit,connection: "v". From distributor to pressure switch. From hydraulic unit to right front wheel. From hydraulic unit to left front wheel teves. From hydraulic unit to adapter fitting,rear right.
MSRP $61.00
$44.90
MSRP $61.00
$44.90
23
Hexagon Spacer Element Mercedes-Benz
Mercedes-Benz Description: Connection. M10. Between hydraulic unit lines and left/right rear axle lines. Brake line. Coupling piece to left rear wheel. Vom ueberg.st.2 zum vorderrad links. Adapter. Between the lines.
MSRP $7.25
$5.46
MSRP $7.25
$5.46
26
Line Mercedes-Benz
Mercedes-Benz Description: From connector do distributor. From adapter fitting to distributor.
MSRP $58.00
$42.44
MSRP $58.00
$42.44
35
MSRP $55.00
$39.98
38
Retaining Spring Mercedes-Benz
Mercedes-Benz Description: Brake hose mounting. Between master cylinder,front axle and bracket,frame. Rear axle. Front left. Brake hose to bracket. Line connections. Bracket, brake line/brake hose. Brake line to brake hose.
MSRP $1.70
$1.27
MSRP $1.70
$1.27
50
Rubber Grommet Mercedes-Benz
Mercedes-Benz Description: Brake line thru wheelhouse panel. Wheelhouse, front right 22 mm asr. To plug the bores in distributor box. Right wheel arch panel.
MSRP $11.00
$8.13
MSRP $11.00
$8.13
70
MSRP $80.00
$58.43
73
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: 6.3x16. Cooling pipe to frame side member. Bracket with motor and gearing to rear pillar. B6.8x16. Bumper face bar upper part to front bumper. Control valve to right wheelhouse. Pipe line to right side member. From master cylinder to front left brake hose.
MSRP $43.50
$33.02
MSRP $43.50
$33.02
76
Line Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: From distributor to rear left brake hose. 4.75x0.7x300 mm. From rear master cylinder to hydraulic unit,connection: "v". 4.75x0.7x300 mm. From brake master cylinder to left front bracket. 4.75x0.7x300 mm. Right front. 4.75x0.7x300 mm. From hydraulic unit to adapter fitting,front. 4.75x0.7x300 mm. To left front wheel. 4.75x0.7x300 mm.
MSRP $81.00
$59.66
MSRP $81.00
$59.66
79
MSRP $59.00
$43.05
82
MSRP $68.00
$49.82
142
MSRP $8.00
$6.10
145
Rubber Guide Mercedes-Benz
Mercedes-Benz Description: Brake line to fire wall. Fuel line under main floor. Air conduits to front subframe. For fuel pipe and brake line. Lines to frame. Fuel lines on main floor,left. Brake line to side member. For fuel pipe and brake pipe up to chassis 7519994.
MSRP $3.40
$2.54
MSRP $3.40
$2.54
148
MSRP $4.90
$3.68
No.
Part # / Description / Price
Price
8
Line Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: From hydraulic unit to right front wheel. From master cylinder to front hydraulic unit. Hydraulic unit connection "lr" to separation point.
11
Line Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: From connector do distributor. From adapter fitting to distributor.
MSRP $58.00
$42.44
MSRP $58.00
$42.44
14
Line Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: From adapter fitting to distributor. From hydraulic unit to right front wheel. From hydraulic unit to left front wheel. From master cylinder,connection "h",to hydraulic unit,connection: "h".
MSRP $70.00
$51.05
MSRP $70.00
$51.05
115
Rubber Guide Mercedes-Benz
Mercedes-Benz Description: Brake line to left front wheelhouse panel. Brake line to battery frame,top. Brake line to fire wall. Spacing of brake lines. Brake line to front axle cross member. Left front brake line to connection support. At side member,bottom right.
MSRP $5.25
$3.94
MSRP $5.25
$3.94
151
Clamp Mercedes-Benz
Mercedes-Benz Description: Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
154
Hose Section Mercedes-Benz
Mercedes-Benz Description: Brake line to fire wall. Right rear brake line to cross member. Chafe protection. Front right brake line mounting to right longitudinal member. 4,5 x 14,5 x 40. At brake line between hydraulic unit and frame bracket. To fuel line. To spring tower, left. Protection against scoring for pipe line.
MSRP $3.70
$2.79
MSRP $3.70
$2.79
157
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Bz6,3x13. Bracket mounting. Control unit to the right of legroom.
