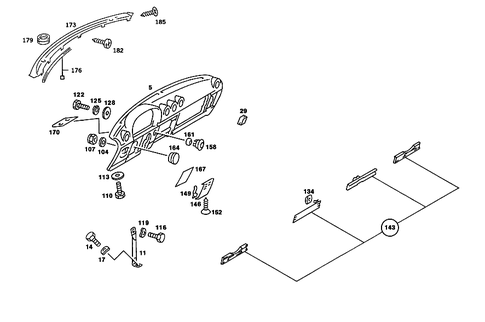

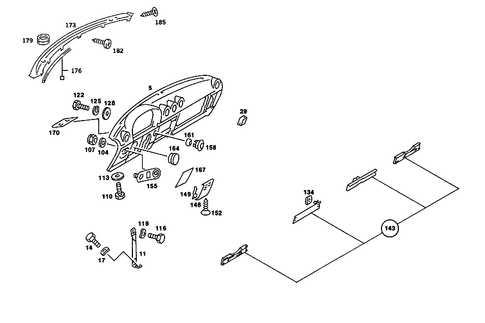

Instrument Panel for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
Price
17
Spring Washer
Mercedes-Benz
Mercedes-Benz Description: Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
MSRP $1.50
$1.14
MSRP $1.50
$1.14
104
Window Mercedes-Benz
Mercedes-Benz Description: Lateral guide to rear end floor. Bumper to cross member. Cable connector to foot operated parking brake. Bracket to heater case. Mud apron. Guide to angle. Bumper to body amg. Engine hood lower catch to cross connection. On rear end floor,lateral left and right.
MSRP $5.50
$4.19
MSRP $5.50
$4.19
113
MSRP $2.00
$1.52
128
Washer Mercedes-Benz
Mercedes-Benz Description: Wiper system mounting plate to partition panel center. Battery frame,front. Brake power regulator to bracket. Battery frame to fire wall. Cooling pipe to frame side member. Hydraulic unit to bracket. Strut to stiffening,front central. Temperature sensor to front bumper.
134
Duo Clip Mercedes-Benz
Mercedes-Benz Description: Connection of legroom flap with right operating unit in central duct.
143
Trim Strip Mercedes-Benz
Mercedes-Benz Description: For instrument panel;set 4 pieces burled walnut,color no.8272.
158
MSRP $25.00
$19.05
167
Cardboard Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Loudspeaker opening 800x1200 mm. 800 x 1200 mm covering below instrument panel. Engine compartment,left. Loudspeaker opening 80 x 120 mm. Below instrument panel, right outside code c01.
170
Felt Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ORDER BY THE METER
ORDER BY THE METER
Description: 60x20x2 mm. Steering column 80x130 mm. 30 x 83 mm. 60 x 20 mm. 430 mm. 2 x 25 x 550 mm. Jack fixture.
176
Seal Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: 1170 mm. Top. 910 mm. Between drip moulding and central roof rail.
MSRP $1.70
$1.27
MSRP $1.70
$1.27
179
Feed-Through Grommet Mercedes-Benz
Mercedes-Benz Description: At windshield covering,for folding top lock.
MSRP $10.50
$8.00
MSRP $10.50
$8.00
182
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: CHANGE-OVER VALVE BRACKET
Diameter: 3,9mm
Thread code letter: F. Garnish moulding to radiator grill
diameter: 3,9mm
thread code letter: f.
Diameter: 3,9mm
Thread code letter: F. Garnish moulding to radiator grill
diameter: 3,9mm
thread code letter: f.
MSRP $4.40
$3.30
MSRP $4.40
$3.30
185
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Garnish moulding to instrument panel. Garnish moulding to cross member,top. Interior cover plate.
No.
Part # / Description / Price
Price
113
MSRP $2.00
$1.52
143
Trim Strip Mercedes-Benz
Mercedes-Benz Description: For instrument panel;set 4 pieces burled walnut,color no.8272.
191
Nut Mercedes-Benz
Mercedes-Benz Description: Pipe line to shock absorber leg reinforcement. Pipe line to valve. Hinge lever to engine hood.
197
MSRP $2.40
$1.78
203
Plug-In Fastener Mercedes-Benz
Mercedes-Benz Description: Air duct to heater case. Covering to instrument panel,bottom. Covering to front panel pillar and heater case. Instrument panel lower part.
